Why the Bahtinov Mask is a Game-Changer in Astrophotography Focus

It’s no secret that getting the focus just right in astrophotography can be a real challenge. While autofocus systems work well enough for daytime photography, astrophotography requires manual focusing techniques that can be tricky to master. If the focus is even slightly off, you can end up with soft stars, less detail, and images that just don’t do justice to the beauty of the night sky.

The Bahtinov mask is a brilliant solution to this problem, using a simple application of optical physics. When you place the mask over the aperture of your telescope, it creates a unique diffraction pattern around bright stars. As you adjust the focus, this pattern shifts predictably, providing a clear visual cue when you’ve achieved perfect focus. The great thing about this method is that it makes minuscule focus adjustments visible, which would otherwise be impossible to see with the naked eye.

Unlike software-based focusing aids, which require costly equipment, the Bahtinov mask is affordable and portable, requiring no power or technical setup. It is compatible with virtually any telescope system and can be used with both visual observation and imaging setups. This has made it a popular focusing tool among amateur astronomers and professional astrophotographers.

The Mechanics of a Bahtinov Mask: Understanding Diffraction Patterns

A Bahtinov mask uses the concept of diffraction, which happens when light waves go through tiny gaps. When the light from a star goes through the mask’s slit pattern, it forms unique diffraction spikes that move in relation to each other as the focus point changes. This pattern serves as your guide to precision focusing, indicating precisely when perfect focus is reached.

This system is so effective because the human eye is remarkably good at detecting misalignment in these diffraction spikes—much better than trying to judge the sharpness of a star directly. This turns the difficult task of getting perfect focus into a simple visual alignment exercise that anyone can do.

“When the three diffraction spikes meet perfectly at their intersection point, you have reached the best focus. Even a slight misalignment of 1/100th of an inch at the focuser can be visibly detected in the diffraction pattern.”

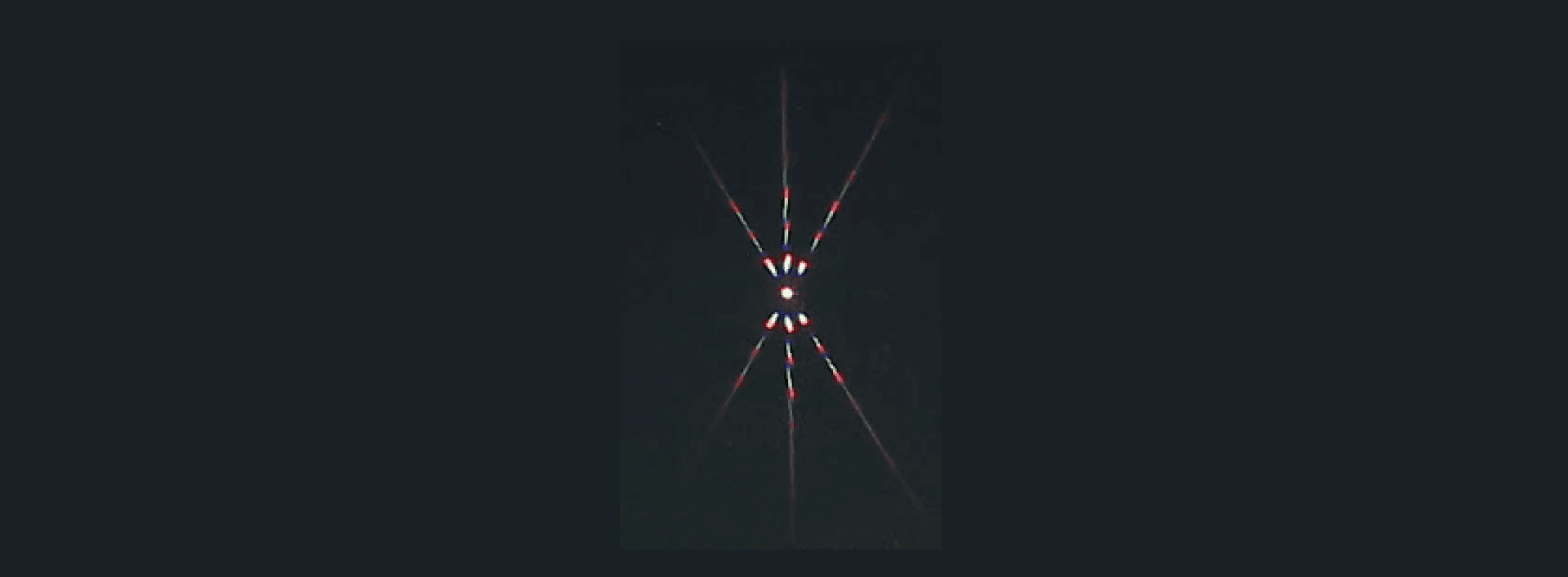

The diffraction pattern created by the mask is not only visually unique—it’s also mathematically precise. The specific design creates a central spike that moves horizontally relative to two diagonal spikes as the focus changes. When all three spikes intersect perfectly, you’ve hit the sweet spot for focus. This visual feedback is immediate and leaves no room for doubt, taking the guesswork out of the focusing process.

Triple Grid Structure

The Bahtinov mask’s brilliance is in its triple grid structure. Each grid has parallel slits at different angles, which create the unique diffraction pattern. The first grid’s slits run about +35 degrees from vertical, the second grid’s slits run at -35 degrees, and the third grid’s slits run horizontally.

As starlight filters through these meticulously placed grids, it forms three unique diffraction spikes. As you change the focus, two diagonal spikes stay relatively still, while the middle spike shifts horizontally compared to the others. This shift gives the visual feedback necessary to figure out when the perfect focus has been reached—when the middle spike is precisely positioned between the two diagonal spikes.

The design of these grids is meticulously planned to ensure the diffraction pattern is easily visible and reacts to even the smallest focus adjustments. This means that the Bahtinov mask is incredibly effective, even with basic equipment, and allows amateur astronomers to achieve the kind of focus precision that was once only achievable with costly specialized equipment.

The Brilliant Creation of Pavel Bahtinov

Russian amateur astronomer Pavel Bahtinov invented the Bahtinov mask in 2005. He wanted to create a more dependable way to focus for his astrophotography. Before his invention, astronomers usually depended on their eyesight or basic focusing tools that didn’t provide much precision.

What makes Bahtinov’s discovery so revolutionary is that he was able to take the principles of optical diffraction and apply them to a design that was not only practical but could also be easily produced and used with standard telescope equipment. Instead of patenting his design, he chose to share it with the astronomy community. This decision allowed his design to quickly become popular around the world, and it is now the standard focusing method used by astrophotographers.

The design has stood the test of time, remaining virtually unaltered since its creation. This is a testament to the simplicity and efficiency of Bahtinov’s original design. Some manufacturers have made minor tweaks to the pattern to better suit specific applications, but the basic three-grid design is still the defining feature of the Bahtinov mask in use today.

How Diffraction Spikes Assist in Accurate Focusing

The Bahtinov mask’s genius is in its ability to turn a vague task of focusing into a clear visual alignment puzzle. The mask’s specific pattern of slits causes light to pass through and create diffraction spikes that serve as highly accurate focus indicators. These spikes are much more sensitive to focus shifts than just the apparent size or brightness of a star.

The science behind this is all about how light waves interfere with each other once they’ve passed through the openings in the mask. This interference results in bright lines (formed by constructive interference) and dark spaces (formed by destructive interference). These shift position with even the tiniest changes in the focal plane. So, even focus adjustments that are too subtle for the human eye to notice when looking directly at a star become immediately obvious in the changing diffraction pattern.

This technique amplifies small focus changes into noticeable shifts in the diffraction pattern, enabling amateur astronomers to achieve the same focus accuracy that was once only achievable with high-priced electronic focusing systems. The method’s dependability and consistency have made it the go-to strategy for astrophotographers all over the world.

Finding the Best Bahtinov Mask for Your Telescope

Choosing the right Bahtinov mask is key to getting the best results with your telescope. The most important thing is to make sure the mask is the right size for your telescope’s aperture. If the mask is too small, it won’t cover the whole aperture, and if it’s too big, it may not fit properly or could cause vignetting.

Commercial masks are typically made to fit standard telescope aperture sizes, which can range from small 60mm refractors to large 14-inch Schmidt-Cassegrains. If you have a non-standard telescope, you can order a custom size or even make your own with templates you can find online. The important thing is to make sure the mask covers your entire aperture and fits snugly on your telescope’s front cell or dew shield.

Size and Aperture Considerations

When choosing a Bahtinov mask, it’s important to select one that is the same size as the aperture diameter of your telescope. For refractors and Schmidt-Cassegrains, the mask should cover the entire diameter of the objective lens or corrector plate. For reflectors, the diameter of the mask should be the same size as the primary mirror, taking into account any central obstruction.

The size of the aperture determines the width and distance between the slits in the mask. The diffraction patterns are clearer and the stars brighter in larger telescopes that have wider slits and greater spacing. In smaller telescopes, the patterns are finer and the diffraction effects are visible even with limited light-gathering capability.

Several companies produce masks that have changeable or removable parts to fit telescopes of varying focal ratios or to produce brighter diffraction patterns for use with dimmer stars. These flexible designs can be especially beneficial if you have more than one telescope or often work under difficult viewing conditions.

Materials: Plastic or Metal Masks

Bahtinov masks are usually made from either hardy plastic or slender metal, with each material offering unique benefits. Plastic masks are light, inexpensive, and resistant to dents, making them handy for regular transport and use in the field. They’re often the top choice for beginners and those who often travel with their gear.

Metal masks, typically crafted from aluminum or steel, provide excellent stiffness and accuracy. They retain their precise measurements irrespective of temperature fluctuations, which can be crucial for obtaining consistent outcomes during extended imaging sessions. The extra weight of metal masks can also assist them in remaining in position on windy evenings, although they are more prone to being dented if not handled properly.

For the majority of stargazers, a high-quality plastic mask will do the trick. It’s durable and cost-effective. However, if you’re after the best possible precision, a metal mask might be more up your alley. This is especially true for larger telescopes, where even a small amount of flexing can mess with the diffraction pattern.

Store-Bought or Homemade?

If you buy a Bahtinov mask, you’re paying for convenience, the precision of the manufacturing process, and sometimes extras like a sturdy mount or a carrying case. Companies like Astrozap, Farpoint, and Celestron make top-notch masks for just about every size and type of telescope. Depending on the size and what it’s made of, a store-bought mask will usually set you back $20-250, depending on the size.

If you’re a budget-conscious stargazer or have a telescope of an unusual size, making your own mask is a great alternative. All you need are simple materials like cardstock, a thin plastic sheet or aluminum, a printed template, and cutting tools. You can use online generators like the Bahtinov Mask Generator to create custom templates that are the perfect size for your telescope.

Whether you’re buying or making your own Bahtinov mask, precision is the key to success. The mask’s effectiveness is entirely dependent on the accuracy of its pattern. So, make sure the slits are clean, correctly spaced, and perfectly aligned according to the standard Bahtinov design.

How to Use a Bahtinov Mask: A Step-by-Step Guide

To get the best results from your Bahtinov mask, you need to follow a certain set of steps. Once you’ve got the hang of it, the whole process should only take a few minutes. And you’ll see the difference in your photos straight away. Here’s how to make the most of this handy focusing tool.

The main idea is to aim at a bright star, look at the unique diffraction pattern the mask makes, and tweak the focus until the pattern shows perfect alignment. With enough practice, this will feel like second nature and can greatly enhance the consistency and quality of your astrophotography results.

1. Look for a Bright Star

Start by moving your telescope towards a bright star that is close to your intended imaging target. Ideally, you should choose a star of magnitude 2-3 that can be seen without any digital enhancement. Stars like Vega, Deneb, Altair, or Sirius are great options when they are visible, but any star that can be clearly seen will work just fine.

For the best results, aim for a star that’s high up in the sky. This will help you avoid any atmospheric distortion that could make focusing more difficult. Stars that are near the horizon should be avoided because atmospheric turbulence can cause the diffraction pattern to move and flicker, making it harder to focus accurately.

When you’re preparing for a deep-sky imaging session, it’s best to choose a focus star that’s no more than 15-20 degrees away from your intended target. This helps to reduce any issues with mirror flop or focus shift as you move between objects. Plus, it ensures that your focus will still be spot on when you switch over to your actual imaging target.

2. Secure the Mask to Your Telescope

Position the Bahtinov mask over the front aperture of your telescope, ensuring it is secure. Most commercial masks come with tabs, Velcro straps, or friction-fit designs that allow them to stay in place without needing any tools. Make sure the mask is centered over the aperture and isn’t obstructing any part of the light path.

It doesn’t matter how you orient the mask as long as it’s secure and covers the whole aperture. Some astronomers like to line up the mask’s grid patterns with the cardinal directions, but that’s more about personal taste than technical need.

Before you start focusing, if you’re using a tracking mount (which is recommended), make sure it’s properly aligned and tracking accurately. This will keep the star from drifting out of view while you’re making fine focus adjustments, which can make the process a lot more difficult.

3. Watch the Diffraction Pattern

Now that the mask is set, take a look at the bright star. You can do this through an eyepiece or, even better, on your camera’s Live View screen. You should instantly see the unique diffraction pattern that the Bahtinov mask creates. You’ll see three separate spikes coming from the star in various directions, creating a pattern that looks rather like an asterisk.

Should the pattern appear too faint, you can enhance its visibility by raising your camera’s ISO or exposure duration. The majority of DSLR and mirrorless cameras can effectively display the pattern at ISO levels between 1600 and 3200, with exposure times of one to two seconds. However, these settings may need to be adjusted depending on your equipment and the brightness of the star.

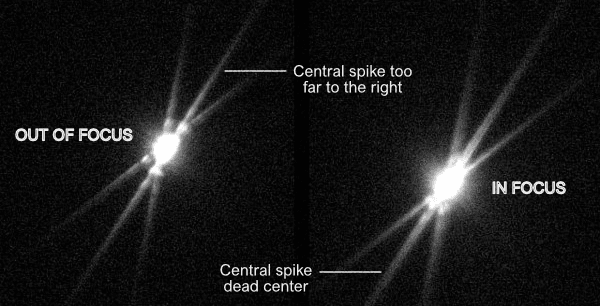

The main horizontal spike is your main tool for focusing. As you change the focus, this spike will move up and down (or left or right, depending on orientation) relative to the other two diagonal spikes. You want to get this central spike exactly between the two diagonal spikes. Do that, and you’ll have the focus just right.

4. Adjust the Focus Until the Central Spike is Aligned

Once the diffraction pattern is visible, slowly adjust the focus on your telescope while keeping an eye on the movement of the central spike. As you adjust the focus, you’ll see the horizontal spike seems to move either up or down relative to the intersection point of the two diagonal spikes. This movement is the key indicator that will help you achieve perfect focus.

Your aim is to have the central spike pass right through the intersection of the two diagonal spikes. When all three spikes meet at the same point, that’s when you know you’ve got the perfect focus. Even the slightest misalignment can be seen right away, allowing for a level of precision in focusing that you simply can’t get by just looking at the star.

As you get closer to perfect alignment, you should gradually make finer adjustments. If you’re using a motorized focuser, use the slowest speed setting for final adjustments. For manual focusers, use just the lightest touch on the focus knob to make tiny incremental changes. Watch carefully as the pattern shifts with each adjustment until the central spike perfectly bisects the intersection of the diagonal spikes.

5. Take off the Mask and Start Taking Pictures

When you’ve gotten the perfect focus as shown by the correctly aligned diffraction pattern, cautiously take off the Bahtinov mask without messing with the focuser position. This is a crucial step—even a tiny amount of pressure on the telescope tube or focuser can alter the focus you’ve worked so hard to get.

Locking the focuser position is a common practice among astronomers if their gear permits it. This is to avoid any unintentional focus changes that could occur as a result of temperature changes, gravity, or accidental touching of the equipment during the imaging session. If you do not have a focus lock, take extra caution when taking off the mask and handling the telescope.

Once the mask is off and the focus is set, you can start imaging your chosen target. Move to your deep sky object or planet and begin taking pictures, knowing that your focus is set for the best detail and sharpness. The time you spend focusing precisely will show in the quality of your pictures right away.

How to Set Up Your Camera for the Best Use of a Bahtinov Mask

Setting up your camera correctly can greatly enhance your ability to read the Bahtinov mask diffraction pattern. The aim is to make the diffraction spikes as clear as possible without overexposing the star or adding extra noise that could make the pattern harder to see.

Although the exact settings will change depending on your specific equipment and the conditions you’re observing, these general guidelines should help you get consistent results. As you gain more experience with your particular setup, you’ll be able to refine these settings and improve your focusing precision.

Suggested Duration for Exposure

Typically, an exposure duration ranging from 1-5 seconds will give the most distinct view of the diffraction pattern. This length of time is adequate to make the diffraction spikes easily seen but short enough to lessen the impact of atmospheric turbulence, which can make the pattern fuzzy and make precise focusing more difficult.

For brighter stars (those of magnitude 0 to +2), you’ll generally only need exposures of 1-2 seconds. For fainter stars (magnitude +3 to 4), you might need 3-5 seconds to get visible diffraction spikes. Going beyond 5 seconds usually won’t make the pattern any more visible, and might actually make your focus less precise by capturing the effects of atmospheric turbulence.

If you use a telescope with a longer focal length (above 1000mm), it may be beneficial to use slightly shorter exposures, as these setups are more susceptible to small atmospheric movements. On the other hand, instruments with a shorter focal length may often benefit from slightly longer exposures, as they can improve the visibility of the diffraction pattern.

Choosing the Right ISO for Visible Diffraction Spikes

Usually, an ISO setting that ranges from 800 to 3200 is the sweet spot for obtaining a balance between pattern visibility and image noise. If you go lower, the diffraction spikes might not be clear enough. On the other hand, going higher might result in too much noise, making it difficult to see the pattern’s fine details.

The best ISO setting is partly dependent on what your camera can do. Modern full-frame cameras with good low-light performance can often get by with lower ISO values (800-1600) and still get clean images with visible diffraction patterns. Older or crop-sensor cameras may need to use higher settings (1600-3200) to get similar results.

Try out various ISO values, but keep the exposure time the same to see which setting gives you the clearest view of the diffraction pattern for your particular setup. The best setting will have sharp, clear spikes with as little background noise as possible.

Live View versus Test Images Method

Most astrophotographers prefer to use their camera’s Live View mode because it provides instant feedback on focus changes. With this method, you can see the diffraction pattern change in real-time as you adjust the focus, which can significantly speed up the focusing process.

When your camera lacks a Live View feature, or the star is too faint to be seen clearly in Live View, you can still achieve focus by taking a series of test images and making adjustments between each one. This method is more time-consuming, but it can sometimes allow you to see subtle pattern details that might not be visible in Live View.

Many experienced astronomers use a combination of both methods. They use Live View to get the initial focus, and then they take a few test photos at slightly different focus points to find the absolute best focus point. This combined method can be especially helpful for important imaging sessions where you need the image to be as sharp as possible.

Advanced Bahtinov Mask Focusing Techniques

After you have a handle on the basics of focusing with a Bahtinov mask, several advanced techniques can help you focus even more precisely. These techniques are designed to help with specific challenges, such as changes in temperature, limitations of your equipment, and maintaining consistent focus over long imaging sessions.

Adding these cutting-edge techniques to your routine can take your astrophotography from decent to outstanding. While they may need a bit more time and concentration, the enhanced picture quality makes them a must for dedicated astrophotographers.

Dealing with Temperature Changes

As the temperature drops during the night, telescopes can lose focus due to what’s known as thermal contraction. This shift can be significant enough to blur an image that was perfectly focused just a few hours earlier. To prevent this, you should use your Bahtinov mask to check and adjust the focus at regular intervals throughout your imaging session, especially if the temperature is falling rapidly.

With your particular setup, you can estimate how much the focal point will shift for each degree of temperature drop for predictable focus shifts. This estimate allows you to make proactive focus changes without disrupting your imaging sequence. You’ll develop a good understanding of how your equipment reacts to temperature changes after several sessions.

There are some high-end motorized focusers that come with temperature compensation features. They can automatically adjust the focus based on the temperature readings. If you use a Bahtinov mask to get the initial precise focus, these systems can keep the perfect focus all night long with very little intervention.

Using Motorized Focusers

Motorized focusers are a game-changer when it comes to the precision of Bahtinov mask focusing. They allow for very minute adjustments without having to physically touch the telescope. This means no more vibration and possible focus shift that can happen when manually adjusting focus knobs, especially with larger telescopes.

If you use a motorized focuser with a Bahtinov mask, it’s best to have the focuser set at its slowest speed for the final adjustments. This allows for minuscule incremental changes that will show the exact point at which the diffraction spikes line up perfectly. Many motorized systems will allow for step sizes as small as 0.001mm, which allows for incredibly precise focusing.

If you want the absolute best in focusing accuracy, pair a motorized focuser with focus position memory. This lets you save the exact focus position for different equipment setups, temperatures, or targets, so you can easily go back to a focus point you know is good as a starting point before you fine-tune with the Bahtinov mask.

You might be interested in the ASCOM-compatible Lacerta stand-alone motorised focuser with camera synchronisation. It has microstep control, a temperature sensor, and a handbox that enables precise, reproducible motorised focusing of the telescope via a microstep-controlled stepper motor. The motor is connected via a backlash-free coupling, and everything is completely encapsulated. To keep a telescope in perfect focus, it’s important to account for temperature changes, since warming or cooling can cause small shifts in the optics. The system automatically compensates for these shifts so that the eyepiece doesn’t drift out of focus.

You can set safe limits for how far the focuser is allowed to move, preventing it from hitting its mechanical endpoints. The built-in thermometer is very precise (down to hundredths of a degree), and its cable is long enough (1.8 meters) to place the sensor right next to the part of the telescope most affected by temperature changes, such as the lenses or mirrors. When using different filters, each one can be given a small adjustment value (an “offset”) so the focus remains correct when you switch between them. The system combines these filter adjustments with the temperature compensation, so both work seamlessly together.

The Lacerta motorized focuser automatically adjusts its speed depending on how fine the movement needs to be, from very tiny steps for precision to larger steps for faster changes. If used with the Lacerta MGEN Superguider, the focuser also “listens” to the camera: if the camera is taking an exposure, the focuser waits until the image is finished before making any corrections. This prevents vibrations or tiny shifts in the eyepiece tube during exposures, which could otherwise blur the image. More about the Lacerta here.

Keeping Your Focus All Night Long

Even if you start with perfect focus, there are a number of things that can cause your focus to shift throughout your imaging session. Regularly checking your focus with your Bahtinov mask will help to make sure that your images stay sharp all night long, especially during longer sessions that last several hours.

It’s a good idea to recheck your focus every 60 to 90 minutes, or any time you significantly shift your camera’s aim in the sky. These checks only take a minute or two, but they can save you from the heartbreak of finding out your entire session was slightly out of focus.

When you’re checking focus, try to go back to the same focus star you used at first, if you can. This consistency gets rid of variables like different star brightness or atmospheric conditions that could impact how you perceive the diffraction pattern. If the first star is no longer available, pick another one that’s about as bright and close to your current target.

Overcoming Bahtinov Mask Challenges

Even when you’re using a well-made mask and following the right techniques, you might still run into a few problems when using a Bahtinov mask. Knowing what these common problems are and how to fix them will help you get back to your imaging work as quickly as possible.

Most issues can be grouped into a few key categories: visibility issues with the pattern, environmental problems, or limitations with the equipment. As you gain more experience, you’ll be able to quickly identify these situations and apply the correct solution without wasting any precious time observing.

Understanding Strange Diffraction Patterns

At times, even with the mask placed correctly, the diffraction pattern can look distorted or fuzzy. These odd patterns are usually a sign of a problem with your optical system, not the mask. The usual suspects are a misaligned mirror, poor seeing conditions, or optical aberrations in your telescope.

Curved diffraction spikes, rather than straight ones, indicate that your telescope probably has spherical aberration or coma. Although the Bahtinov mask can still assist you in achieving the best focus, these optical problems should be addressed separately, either through collimation or by using corrective optics, to achieve the best imaging results.

If the diffraction spikes look uneven (either in brightness or length), it usually means that your optical system is out of alignment. If you’re using a reflector, it’s probably time to collimate it. If you’re using a refractor, you should make sure that the objective lens isn’t being pinched in its cell and that any diagonal mirrors are correctly aligned.

What to Do If the Spikes Are Too Faint or Hard to See

If the diffraction spikes are too faint, it can make it hard to focus properly. If you’re having trouble seeing the pattern, try increasing the exposure time or the ISO setting to make it easier to see. If the pattern is particularly faint, you may need to increase the exposure time to 5-8 seconds. However, be aware that longer exposure times can introduce atmospheric turbulence effects.

An alternative method is to choose a brighter star for focusing. Even though any visible star can be used, brighter stars (magnitude 0 to +2) generate much more distinct diffraction patterns that are simpler to interpret correctly. Taking the time to slew to a brighter star often saves time in the long run by making the focusing process quicker and more accurate.

If your equipment consistently produces faint patterns, you might want to look into a mask with wider slits or a higher transmission percentage. Some commercial masks come with different slit widths specifically designed for different telescope apertures and focal ratios to optimize pattern brightness.

Handling Atmospheric Turbulence

Atmospheric turbulence, also known as poor seeing, can cause the diffraction pattern to rapidly flicker and move, making it difficult to determine a precise focus. If you’re dealing with substantial turbulence, you should increase your camera’s frame rate and take several pictures instead of relying on a single pattern observation.

By taking a series of quick photos, you can judge the shifting patterns to find the true focus point. Some advanced software can do this averaging for you, giving a composite view that gets rid of a lot of the atmospheric interference.

When the visibility is really bad, you may have to wait for those rare moments when the atmosphere is stable or “good visibility” to make your final focus adjustments. Patience is key here—keep an eye out for those moments when the pattern stabilizes for a short time and make quick adjustments during these moments of opportunity.

Software Enhancements: How Digital Tools Can Improve Bahtinov Mask Focusing

The Bahtinov mask is a highly effective tool in its own right, but when paired with specialized software, its capabilities are significantly enhanced. These digital tools take the guesswork out of pattern recognition and analysis by automating these processes, providing quantitative focus measurements instead of relying on subjective visual interpretation.

Software help can be a real lifesaver for astrophotographers who are shooting in difficult conditions or who want to achieve the highest possible level of precision. With these tools, the Bahtinov mask goes from being a great manual focusing aid to being part of a complete digital focusing system.

Using Bahtinov Grabber and SharpCap

Bahtinov Grabber is a free software available for now via the Cloudy Nights forum that is specifically designed to analyze Bahtinov mask patterns. It takes live images from your camera, identifies the diffraction pattern, and calculates a focus score that shows how close you are to achieving perfect focus. This method removes the subjectivity of visually interpreting the pattern

Here are some of the features of the Bahtinov mask:

SharpCap, a broader astronomy capture platform, offers similar functionality. It includes focusing tools that have Bahtinov mask analysis features. These features can identify the pattern and provide focus feedback automatically. Even subtle misalignments in the diffraction pattern, which might be difficult to see visually, can be detected by the software.

Both programs let you store reference images of perfectly focused patterns for future comparison. This is especially useful when using multiple equipment configurations, as it gives you a visual reference of what “perfect focus” looks like with each setup.

Integration with BackyardEOS/BackyardNIKON

BackyardEOS and BackyardNIKON are two powerful astrophotography control interfaces designed for Canon and Nikon cameras, respectively. They both come with a specialized focus module that improves the visibility of Bahtinov patterns, making it easier for you to interpret them correctly. This feature makes them an excellent tool for Bahtinov mask focusing.

One especially handy feature is the “frame and focus” mode. This mode continuously takes and displays short exposures as you adjust the focus. This gives you immediate feedback on how the adjustments you make to the focus affect the Bahtinov pattern. You won’t need to manually trigger each test exposure. The software can also overlay alignment guides. These guides help you determine when the diffraction spikes are in the perfect position.

DIY Bahtinov Mask: Step-by-Step Guide

Building a Bahtinov mask yourself can be a fun project that not only saves you a few bucks but also gives you a focusing tool that is tailored to your particular telescope. If made carefully and accurately, a DIY mask can be just as good as a store-bought one.

For telescopes with non-standard aperture sizes or unique configurations that might not be well-served by off-the-shelf masks, the DIY approach is especially beneficial. With just a few basic materials and tools, you can create a mask that is specifically tailored to the dimensions and characteristics of your equipment.

What You’ll Need

When making a Bahtinov mask at home, you’ll want to find a material that’s rigid, durable, and easy to cut. Thin plastic sheets, like 0.5-1mm polypropylene or styrene, are a great choice and can be found at most craft stores or online. If you’re in a pinch, heavy cardstock (300gsm+) can be used for a temporary mask. If you’re looking for something more permanent, a thin sheet of aluminum will do the trick.

Aside from the main material, you’ll need a few other tools and supplies: a sharp craft knife or precision cutting tool, a metal ruler for straight cuts, a cutting mat to protect your work surface, and adhesive tape for securing your template. If you’re working with metal, you’ll need tin snips or metal shears, as well as files for smoothing rough edges.

If you’re looking to mount your completed mask, you might want to think about adding foam weatherstripping tape around the edge. This will create a secure friction fit against your telescope tube or dew shield. It’s a reliable mounting system and you won’t have to make any permanent attachments to your valuable equipment.

Resources for Designing and Creating Templates

Many online generators create custom Bahtinov mask templates to fit your telescope’s specifications. The most commonly used one is the Bahtinov Mask Generator here. It creates printable templates that are perfectly sized for your telescope’s aperture. It also optimizes the slit patterns for different focal ratios.

Recommendations for Accurate Sizing and Building

As you create your mask, make sure to include an extra 1-2cm beyond the diameter of your telescope’s aperture. This will allow you to make mounting tabs or a friction-fit rim. Although this extra material doesn’t change the optical performance, it does make a big difference in how well the mask stays attached to your telescope.

Don’t rush the cutting process, as the accuracy of the slits will affect the quality of the diffraction pattern. Make sure you’re working in a well-lit area and consider using a magnifying glass for the more intricate cutting. If the pattern is complex, break the work up into sessions so you don’t get too tired and make mistakes.

Going Beyond the Basics: Advanced Mask Techniques

While the standard Bahtinov mask works well for most applications, some situations may require a more advanced design. These variations and enhancements of the standard mask design can address specific focusing challenges while still maintaining the basic Bahtinov concept.

If you’re having trouble focusing or if you’re looking for that last bit of precision for your most demanding astrophotography projects, it might be worth looking into these alternatives. Each one has its unique benefits, but they all keep the basic principle that makes the Bahtinov mask so effective.

Common Questions and Misunderstandings

Having assisted many fellow stargazers in bettering their focusing methods, I’ve come across a multitude of inquiries about Bahtinov masks. These commonly asked questions tackle the most typical worries and misunderstandings about this indispensable focusing instrument.

Getting to grips with these subtleties can help you maximize the use of your Bahtinov mask, no matter what your kit or level of experience. Even seasoned astrophotographers occasionally stumble upon new methods or uses that improve their focusing accuracy.

Below are the most common questions from both novice and seasoned astrophotographers about how to use a Bahtinov mask in their imaging process.

“The Bahtinov mask revolutionized amateur astrophotography by transforming the most challenging technical aspect—achieving perfect focus—into a simple visual task that anyone can master with minimal practice.”

Can I use a Bahtinov mask with a DSLR and a camera lens?

Yes, Bahtinov masks work great with camera lenses, especially telephoto lenses used for wide-field astrophotography. Special adapter masks designed for standard filter thread sizes (52mm, 67mm, 77mm, etc.) are available commercially, or you can create DIY versions sized for your specific lens diameter. These smaller masks function identically to their telescope-sized counterparts, creating the same distinctive diffraction pattern that indicates perfect focus.

How does the precision of a Bahtinov mask compare to other focusing techniques?

When it comes to focus precision, the Bahtinov mask rivals, if not surpasses, most electronic focusing systems. In practice, it can consistently achieve a focus precision of about 5 microns (0.005mm) if used correctly. This level of precision is beyond what the human eye can visually detect and near the theoretical resolution limit of most amateur telescopes.

It’s also more precise than traditional focusing techniques, such as minimizing star size or using Hartmann masks. Its precision is even comparable to expensive dedicated electronic focusing systems that can cost hundreds or even thousands of dollars. The Hartmann mask is a tool to help focus telescopes, mainly used by amateur astronomers. It is named after the German astronomer Johannes Franz Hartmann (1865–1936), who developed it around 1900.
