What Is Coma and Why It Ruins Astrophotos

Coma (short for comatic aberration) is an optical distortion that occurs when light from off-axis points doesn’t focus perfectly in the image plane. In practical terms, it transforms what should be perfectly round stars into elongated, comet-shaped blurs near the edges of the field of view. The effect becomes increasingly pronounced the further away from the center of the image, creating a gradual degradation that’s particularly visible in wide-field views. This aberration is especially problematic for astrophotographers, as we rely on precise star shapes for everything from aesthetic quality to accurate guiding and photometry.

“Coma is the single most limiting optical aberration in Newtonian telescopes for astrophotography. While the center of your image may contain perfect stars, the edges can display stars that look like tiny comets all pointing toward the center - essentially rendering up to 70% of your expensive camera sensor unusable for critical imaging.” – Advanced Astrophotography Techniques, 2023

The frustration of coma becomes most apparent when processing your images. You’ll find yourself making difficult choices: crop away the distorted edges (sacrificing valuable field of view), apply aggressive processing to minimize the appearance of the distortion (introducing other artifacts), or simply accept the compromised quality. None of these compromises is necessary with proper coma correction.

The Science Behind Optical Coma Distortion

At its core, coma results from the way light rays from off-axis points interact with the curved primary mirror of a reflector telescope. The primary mirror in a Newtonian telescope has a parabolic shape, which excellently focuses light from the center of the field but creates increasingly problematic aberrations for light entering at an angle. When these off-axis light rays reflect off the primary mirror, they don’t converge to a perfect point but instead form a comet-shaped blur.

The severity of coma is directly related to the focal ratio (f/number) of your telescope. Faster telescopes (lower f/numbers like f/4 or f/3.6) exhibit much more severe coma than slower instruments (f/8 or higher). This relationship follows a cubic function - halving the focal ratio increases coma by approximately eight times! This explains why coma is particularly problematic in the increasingly popular fast astrographs designed specifically for deep-sky photography.

Understanding this optical phenomenon helps explain why specialized correction is necessary. Coma correctors incorporate precisely calculated lens elements that counteract this aberration by redirecting the light paths to achieve consistent focus across the entire field of view.

How Coma Affects Different Telescope Designs

While coma is most notorious in Newtonian reflectors, it affects various telescope designs differently. Newtonian reflectors, particularly those with focal ratios faster than f/5, suffer the most pronounced coma effects due to their parabolic primary mirrors. The faster the focal ratio, the more severe the coma distortion becomes at the field edges. Schmidt-Cassegrain telescopes (SCTs) and their variants also experience coma, though typically to a lesser degree than fast Newtonians, and often combined with field curvature that requires separate correction.

Refractors, particularly achromatic and apochromatic designs, generally exhibit minimal coma compared to reflectors. However, they often suffer from other aberrations like chromatic aberration or field curvature that require different corrective approaches. Ritchey-Chrétien and some advanced catadioptric designs are specifically engineered to minimize coma inherently, though they may still benefit from field flatteners for optimal imaging performance across large modern sensors.

Identifying Coma in Your Images

Recognizing coma in your astrophotographs is relatively straightforward once you know what to look for. The most obvious sign is stars that appear increasingly elongated or comet-shaped as you move from the center toward the edges of your frame. These distorted stars all point toward (or away from) the center of the image, creating a radial pattern of distortion. The effect becomes more pronounced in the corners of your image, where stars may appear severely stretched or fan-shaped.

To confirm coma is your specific issue, examine a single raw frame (not stacked) with moderate to bright stars visible across the field. Stars near the center should appear round and well-defined, while those at the edges exhibit the characteristic elongation. This pattern distinguishes coma from other issues like tracking errors (which affect all stars uniformly), field curvature (which causes defocused but still symmetrical stars), or astigmatism (which creates elongated stars in specific orientations regardless of position).

Many astrophotographers mistakenly attribute coma to poor focus, camera tilt, or tracking issues, leading to frustrating troubleshooting sessions that don’t address the root cause. By understanding how to properly identify coma, you can directly address this optical limitation and dramatically improve your imaging results.

Types of Coma Correctors for Astrophotography

The market offers several distinct types of coma correctors, each with unique optical designs tailored to different telescopes and imaging requirements. Understanding these differences will help you select the optimal solution for your specific setup. While all coma correctors share the same fundamental goal of correcting off-axis aberrations, their implementation, performance characteristics, and price points vary significantly.

Paracorr Systems from TeleVue

TeleVue’s Paracorr (Parabola Corrector) series represents one of the most established and refined coma correction solutions available. These premium units employ sophisticated multi-element lens designs specifically optimized for Newtonian reflectors. The TeleVue Paracorr Type-2 has become particularly popular among serious astrophotographers for its excellent correction across a wide range of focal ratios, from f/3 to f/5.

What distinguishes the Paracorr is its ability to provide comprehensive correction while maintaining true focal length (unlike reducer-correctors). This preservation of focal length makes it ideal for applications where maintaining precise image scale is important. The Paracorr also features adjustable tuning through a rotation mechanism that allows fine-tuning of the correction for optimal performance with your specific telescope. The trade-off comes in the form of a higher price point and slightly longer exposure times compared to reducer-correctors.

Baader Mark III MPCC (Multi-Purpose Coma Corrector)

The Baader Mark III MPCC has earned its reputation as an excellent mid-range solution that balances performance with affordability. This corrector uses a simpler lens configuration than premium models, which helps keep costs down while still delivering effective coma correction for focal ratios between f/4 and f/6. The MPCC’s versatility is another key selling point, as it’s compatible with both visual and photographic applications.

Baader Mk III MPCC

One advantage of the MPCC is its minimal focal length modification (approximately 1.07x), meaning it preserves most of your telescope’s native focal length while providing good correction. This makes it particularly appealing for astrophotographers on a budget who don’t want to sacrifice significant image quality. The more straightforward optical design does have limitations, however, with correction becoming less effective at extremely fast focal ratios (below f/3.8) or with very large sensors.

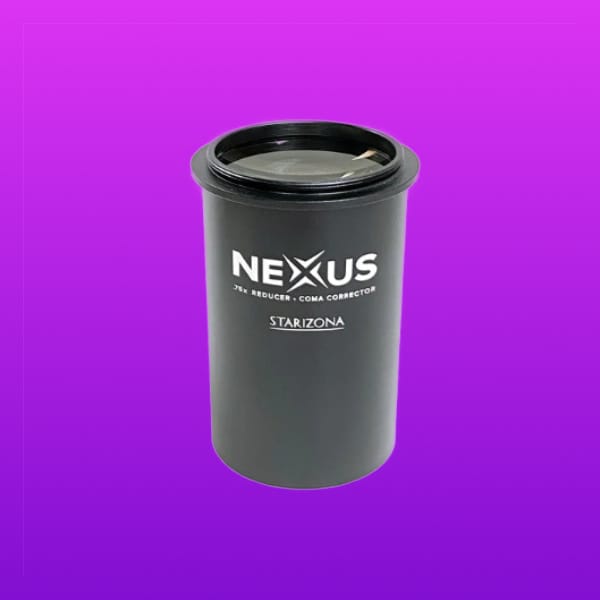

Starizona Nexus 0.75x Reducer/Corrector

The Starizona Nexus represents the cutting edge in coma correction technology, combining excellent coma correction with significant focal reduction. This dual functionality transforms your telescope in two critical ways: eliminating coma aberration while simultaneously reducing the focal ratio by 0.75x. For example, an f/4 Newtonian becomes an even faster f/3 system with the Nexus installed, dramatically reducing exposure times needed to capture faint objects.

Starizona Nexus

What truly sets the Nexus apart is its exceptional performance at the fastest focal ratios. Where other correctors struggle with telescopes faster than f/4, the Nexus maintains excellent star shapes even with f/3.6 astrographs. This makes it particularly valuable for astrophotographers using large-sensor cameras who need both speed and field correction. The Nexus uses a sophisticated 5-element design that delivers impressive edge-to-edge sharpness, though this advanced optical system does command a premium price.

The ability to both correct coma and reduce focal length makes the Nexus particularly efficient for deep-sky imaging, where maximizing light gathering in minimal time is essential. This dual functionality effectively gives you two significant upgrades in a single accessory.

Budget-Friendly Options

For those just starting in astrophotography or working with limited budgets, several manufacturers offer more affordable coma correctors that provide acceptable performance. GSO, Apertura, Omegon, and similar brands produce basic coma correctors in the $100-150 range that can significantly improve edge performance compared to no correction at all. These entry-level options typically use simpler 2 or 3-element designs that work adequately with moderate focal ratios (f/4.5 to f/6).

Omegon 2" Coma Corrector

When considering budget options, be realistic about their limitations. These correctors generally perform best with smaller sensors (APS-C or smaller) and moderate focal ratios. They may not fully correct coma in very fast telescopes or at the extreme corners of full-frame sensors. However, they represent an excellent starting point and allow you to determine if the improvement justifies investing in a more premium solution later.

Many astrophotographers begin with these affordable options before eventually upgrading to higher-performance models as their skills and equipment evolve.

Choosing the Right Coma Corrector for Your Setup

Selecting the optimal coma corrector involves carefully matching the corrector’s capabilities to your specific telescope, camera, and imaging goals. This decision impacts everything from image quality to exposure times and even what objects you can effectively capture. Taking time to evaluate your needs will prevent costly mistakes and ensure you achieve the best possible results from your investment.

Matching Correctors to Your Telescope’s Focal Ratio

Your telescope’s focal ratio (f/number) is perhaps the most critical factor in selecting an appropriate coma corrector. Ultra-fast Newtonians (f/3 to f/4) require the most sophisticated correction and benefit most from premium options like the TeleVue Paracorr Type-2 or Starizona Nexus. These fast systems exhibit severe coma that simpler correctors cannot fully address, particularly at the edges of large sensors.

Moderate focal ratio telescopes (f/4.5 to f/6) have more flexibility, often performing well with mid-range options like the Baader MPCC or even quality budget correctors. The less extreme coma in these systems means you don’t necessarily need the most advanced (and expensive) correction to achieve good results. For slower Newtonians (f/6.5+), coma is less pronounced, and you might consider whether the improvement justifies the investment or if your funds would be better allocated to other equipment upgrades.

Always verify the manufacturer’s specified focal ratio range for any corrector you’re considering. Using a corrector outside its designed range often leads to disappointing results or even degraded image quality compared to no correction at all.

Compatibility with Your Camera System

Your camera’s sensor size significantly influences corrector selection. Larger sensors (full-frame or medium format) capture a wider field of view, meaning light rays pass through the corrector at more extreme angles near the frame edges. This demands better correction than smaller sensors (Micro 4/3 or APS-C), which utilize only the central portion of the image circle. Premium correctors become almost mandatory with full-frame cameras to maintain good star shapes across the entire field.

Connection compatibility is equally important. Verify that the corrector you’re considering offers the appropriate thread sizes or adapters for your specific camera body and telescope focuser. Most modern correctors use standard T-threads (M42×0.75) on the camera side, but the telescope-side connection varies. Some systems may require additional adapters, spacers, or even custom solutions to achieve proper spacing and secure attachment.

Also consider the corrector’s clear aperture relative to your image circle requirements. Some budget correctors have restricted clear apertures that may vignette with larger sensors, effectively negating some of the benefits of your expensive camera.

Price vs. Performance Considerations

Coma correctors range from under $150 for basic models to over $600 for premium solutions, presenting a significant decision for most astrophotographers. When evaluating this investment, consider the total value of your imaging system. A $200 corrector might seem expensive, but if it allows you to effectively utilize the full sensor area of a $3,000 camera, the value proposition becomes much clearer. Similarly, a premium corrector that also reduces focal length (like the Nexus) effectively gives you two upgrades in one - faster imaging and better correction.

Long-term satisfaction often favors investing in the best corrector you can reasonably afford. Many astrophotographers who start with budget options eventually upgrade, effectively paying twice. If you’re serious about the hobby and plan to continue for years, the premium options typically deliver better performance and satisfaction over time. However, if you’re still exploring the hobby or working with moderate equipment, a mid-range option might provide the best balance of performance and value.

Consider also how a corrector’s performance aligns with your specific imaging targets. If you primarily photograph bright, large objects where exposure time isn’t critical, a standard corrector might be perfect. If you specialize in faint galaxies or nebulae where every photon counts, the faster system created by a reducer/corrector might justify its premium price through significantly reduced exposure times.

Step-by-Step Installation Guide

Proper installation of your coma corrector is just as important as selecting the right model. Even the most premium corrector will underperform if installed incorrectly. The process requires attention to detail, but isn’t overly complex once you understand the fundamentals. I’ve refined this process through years of trial and error, and following these steps will help you achieve optimal results from your first imaging session.

Begin by gathering all components and thoroughly cleaning each optical surface. Dust or fingerprints on either the corrector or camera sensor can significantly degrade image quality, creating artifacts that are difficult to remove in processing. Use proper optical cleaning techniques and tools - never dry wipe optical surfaces or use household cleaning products. A rocket blower and lens cleaning solution designed specifically for coated optics will safely remove contaminants without risking damage to delicate optical coatings.

Required Tools and Adapters

Successful installation requires having the right connection hardware for your specific equipment combination. Most coma correctors use standard T-threads (M42×0.75mm) on the camera side, but telescope-side connections vary significantly between manufacturers. You’ll typically need a combination of the coma corrector itself, adapter rings to match your telescope’s backfocus requirements, and potentially a camera-specific T-adapter. A digital caliper for measuring spacings precisely is invaluable for achieving optimal results, as is a small set of hex wrenches for tightening connection points securely without damaging threads.

Beyond basic hardware, consider investing in a collimation tool like a Cheshire eyepiece or laser collimator if you don’t already own one. Perfect collimation becomes even more critical when using a coma corrector, as any misalignment in the optical train will be immediately apparent in your images. Additionally, having proper thread-locking compounds (like Vibra-TITE or low-strength Loctite) helps prevent connections from loosening during long imaging sessions without making them impossible to disassemble later.

Proper Spacing Techniques

The single most critical aspect of coma corrector installation is achieving the correct spacing between the corrector and your camera’s sensor. Most Newtonian coma correctors are designed to be positioned approximately 55mm from the sensor plane, though this distance varies between models (always consult your specific corrector’s documentation). Even small deviations of 2-3mm from the optimal spacing can significantly degrade correction performance, particularly at the edges of your field.

Calculate your complete optical train spacing by determining your camera’s flange-to-sensor distance (which varies by manufacturer and model) and adding the necessary adapter lengths to achieve the corrector’s required spacing. Many modern correctors include adjustable spacing mechanisms or spacer rings to fine-tune this distance precisely. If your system doesn’t include these, precision spacer rings in various thicknesses can be purchased separately to achieve optimal positioning. Document your final configuration once you’ve achieved good results, as this will save time when reassembling your imaging train in the future.

Securing Your Camera Equipment

With the optical spacing optimized, focus on creating a rigid, stable connection between all components. Any flexure or movement in the imaging train will degrade image quality, particularly during long exposures or when imaging in windy conditions. Use high-quality compression rings rather than simple set screws whenever possible, as they distribute pressure more evenly and reduce the risk of damaging threads or introducing tilt. Ensure all connection points are firmly tightened but avoid over-tightening, which can damage threads or deform precision components.

Pay special attention to the weight distribution of your fully assembled imaging train. Heavy cameras or filter wheels can create substantial leverage that strains focusers and introduces flexure. Consider using additional support systems like camera rotators with integrated support bearings or dual-mount solutions for particularly heavy setups. The most perfectly corrected optical system will still produce poor results if mechanical flexure allows the camera position to shift during imaging.

Testing Your Installation

Before committing to a full night of imaging, perform systematic testing to verify your coma corrector is performing as expected. Start with a simple star test by taking short exposures (15-30 seconds) of a star field with reasonably bright stars across the frame. Examine the resulting image at 100% magnification, paying close attention to star shapes from center to edge. Ideally, stars should remain round and well-defined across the entire field, with minimal elongation even in the corners.

If you notice inconsistent correction (stars well-corrected in some areas but not others), this typically indicates either an alignment issue in your optical train or a spacing problem. Systematic star elongation in one direction across the entire field usually points to tracking issues rather than optical problems. Coma correction should result in symmetrical improvement from center to edge. Don’t be afraid to make small adjustments to spacing and retest - finding the optimal configuration often requires some experimentation, but the improvement in final image quality makes this effort worthwhile.

Fine-Tuning Your Coma Corrector

Once basic installation is complete, several fine-tuning steps can elevate your results from good to exceptional. These refinements address subtle issues that might not be immediately apparent but significantly impact image quality over long integration times. Perfecting these details separates casual astrophotography from truly impressive technical results.

Achieving Perfect Back Focus

Beyond the critical spacing between corrector and sensor, overall back focus management plays a crucial role in optimization. Back focus refers to the distance from your telescope’s focus point to the sensor plane, incorporating all components in between. Many telescopes have specific back focus requirements that must be maintained for optimal performance. Premium coma correctors often provide detailed specifications about how they affect this distance.

Fine-tuning back focus often requires iterative testing. Start with the manufacturer’s recommended distance, then capture test frames with small adjustments (2-3mm) in either direction. Compare star shapes across these test images to identify which spacing delivers the most consistent correction across your field of view. Some advanced astrophotographers create detailed maps of their optimal spacing for different equipment configurations, allowing quick setup with predictable results.

Remember that temperature changes can affect optimal back focus, particularly with metal components that expand and contract. What works perfectly on a warm summer night might need slight adjustment during winter imaging sessions. Building this understanding of your specific system’s behavior improves results in all conditions.

Optimizing Field Flatness

While coma correctors address the comet-shaped distortion of stars, they may not perfectly correct field curvature - another common aberration in fast Newtonian systems. This curvature causes stars to defocus near the edges even when the center is perfectly focused. Some premium coma correctors incorporate field flattening into their design, but many do not specifically address this issue.

To test for field curvature, capture a series of test images with focus adjusted in small increments. If you notice that different focus positions result in sharp stars in different parts of the frame, field curvature is present. In mild cases, you can mitigate this by finding a compromise focus position that provides acceptable sharpness across the field. For more severe cases, consider using specialized field flatteners in conjunction with your coma corrector, though this requires careful integration to maintain proper spacing for both components.

Balancing Your Telescope After Installation

Adding a coma corrector and camera assembly shifts your telescope’s balance point, potentially affecting tracking accuracy and putting strain on your mount’s motors. Rebalancing is essential after installing these components. Start by balancing in the right ascension axis with the telescope positioned on the eastern side of the mount. Once balanced east-west, rotate the telescope to a position pointed near the celestial pole and adjust counterweights to achieve balance in declination.

For the most demanding imaging, consider the concept of “slightly east-heavy” balancing. This creates a small but consistent pressure against the RA gear’s driving face, eliminating gear backlash that can cause periodic tracking errors. The improvement may seem subtle, but it becomes apparent in long-exposure images where even minor periodic errors can create elongated stars despite your careful optical corrections.

Before and After: Real Results from Coma Correction

The theoretical benefits of coma correction become strikingly apparent when comparing actual images taken with and without a corrector. I was genuinely surprised by the dramatic improvement when I first installed a quality corrector on my 8-inch f/4 Newtonian. Stars that had previously resembled tiny comets in the outer 30% of my frame suddenly appeared as perfect pinpoints, revealing subtle details in galaxy arms and nebula structure that had been obscured by distortion.

The most significant transformation occurs in wide-field, star-rich areas like the Milky Way core or large nebula complexes. In these regions, the improvement isn’t merely cosmetic - it substantially increases the useful data in your images. Photometric measurements become more accurate, faint details emerge from the background, and the overall impression of sharpness and clarity improves dramatically. Perhaps most importantly, the usable field of view effectively expands by 30-40 percent, allowing you to capture larger objects or use larger sensors without quality compromise.

Edge-to-Edge Sharpness Improvement

The most immediately noticeable improvement after installing a quality coma corrector is the transformation of star shapes from the center to the edges of your frame. Without correction, stars progressively degrade from perfect circles at the center to elongated, comet-shaped blurs at the edges, with the effect becoming increasingly severe toward the corners. After proper correction, stars maintain their circular shape and tight profile across virtually the entire field, with only minimal degradation in the extreme corners of full-frame sensors.

This edge sharpness improvement has profound implications beyond simply making stars look better. It allows you to utilize your entire sensor area effectively, maximizing the return on your camera investment. It also improves the accuracy of autoguiding, as guide stars remain well-defined regardless of their position in the frame. Perhaps most importantly, it reveals fine details in extended objects that would otherwise be lost in the distortion, particularly when these details extend to the frame edges.

Star Shape Analysis

Analyzing star profiles objectively confirms what visual inspection suggests. Using software tools like PixInsight’s SubframeSelector or standalone FWHM (Full Width at Half Maximum) analyzers reveals quantifiable improvements. Without correction, star FWHM measurements might show values of 2-3 pixels at the center but degrade to 5-7 pixels at the edges, indicating severe distortion. With proper correction, these values remain consistent within 0.5-1 pixel across the entire frame, demonstrating the corrector’s effectiveness.

Beyond simple size measurements, eccentricity analysis (how elongated stars appear) shows even more dramatic improvement. Uncorrected images typically show eccentricity values below 0.2 at the center but degrade to 0.6-0.8 at the edges. Properly corrected images maintain values below 0.3 even at the extreme corners. This consistency greatly improves both aesthetic quality and scientific utility of astro images, allowing more accurate photometry and astrometry across the entire field.

Resolution Gains in Deep Sky Objects

Perhaps the most rewarding improvement comes in the detailed resolution of extended deep sky objects. Galaxy structure, particularly in the outer spiral arms, becomes significantly more defined with proper coma correction. Nebula filaments maintain their delicate structure rather than dissolving into bloated, indistinct regions near frame edges. Globular clusters transform from amorphous blobs into collections of resolved individual stars, even when positioned away from the center frame. These improvements add scientific value to your images while dramatically enhancing their visual impact.

This resolution improvement also extends your effective reach with a given instrument. Details that previously required a larger aperture telescope become visible because the optical system now operates closer to its theoretical resolution limit across the entire field. Many astrophotographers report that adding a premium coma corrector delivers more noticeable improvement than upgrading to a larger telescope of the same design, while costing significantly less and requiring no changes to mount capacity or observatory space.

Common Problems and Troubleshooting

Even with careful installation and adjustment, issues can arise when integrating a coma corrector into your imaging system. Understanding common problems and their solutions helps you quickly diagnose and resolve these issues, minimizing frustration and lost imaging time. Most problems fall into predictable categories with straightforward remedies once properly identified.

Vignetting Issues and Solutions

Vignetting (darkening toward image edges) is one of the most common issues encountered after installing a coma corrector. This darkening occurs when the optical path becomes restricted, preventing light from reaching the sensor edges. The most frequent cause is an insufficiently clear aperture in either the corrector itself or in the optical train components like adapters or focuser tubes. This becomes particularly problematic with larger sensors that require wider light cones to fully illuminate their corners.

To diagnose vignetting, capture evenly illuminated test frames of the twilight sky or use a flat-field light source. Gradual darkening toward corners indicates vignetting is present. Solutions include using higher-quality correctors with larger clear apertures, removing unnecessary extension tubes or adapters that may restrict the light path, and ensuring your focuser tube diameter is sufficient for your sensor size. For severe cases, consider upgrading to a low-profile focuser specifically designed for imaging with larger sensors.

Focus Shift Complications

Many astrophotographers encounter focus shift issues when first installing a coma corrector. This occurs because the corrector acts as an additional optical element that alters the light path, often moving the focal plane inward (closer to the primary mirror). If your telescope’s focuser lacks sufficient inward travel, you may find yourself unable to reach focus, particularly when imaging at cooler temperatures, when tubes naturally contract.

The simplest solution is to install appropriate spacers between your telescope and focuser to compensate for this shift. Many manufacturers offer specific spacing recommendations for their correctors. For more persistent issues, consider a low-profile focuser with greater inward travel range. Some astrophotographers even modify their telescopes by moving the primary mirror forward in the tube to create additional back focus.

Temperature-related focus shifts require special attention. As your telescope cools during night imaging sessions, most components contract slightly, causing incremental focus changes. With a coma corrector installed, these shifts may become more pronounced or behave differently than you’re accustomed to. Autofocus systems can help manage these changes, but understanding your system’s behavior across temperature ranges allows you to anticipate and compensate for these shifts effectively.

Correcting Tilt Problems

Tilt in the imaging train creates asymmetrical correction where stars appear well-corrected in some areas but remain distorted in others, typically in a pattern across the frame. This issue can be particularly frustrating because it often appears similar to inadequate correction or spacing problems, leading to misdiagnosis. True tilt issues show a distinctive pattern where star shapes vary systematically across the field rather than degrading uniformly toward edges.

Address tilt by methodically examining each connection point in your imaging train. Replace simple set screws with compression rings wherever possible, as these provide more even pressure and reduce tilt risk. Pay particular attention to the corrector’s connection to both the telescope and camera - these junctions are common sources of misalignment. For persistent tilt issues, specialized tilt adapters allow precise adjustment to achieve perfect perpendicularity between sensor and optical axis, though these require patience to adjust correctly.

Advanced Techniques for Maximizing Your Coma Corrector

Once you’ve mastered basic installation and troubleshooting, several advanced techniques can further enhance your results. These approaches represent the cutting edge of astrophotography optimization, allowing you to extract maximum performance from your equipment. While some require additional investment or technical understanding, the improvements they offer can transform good images into exceptional ones.

The most successful astrophotographers combine multiple optimization strategies rather than focusing on single improvements. This comprehensive approach addresses various limitations simultaneously, creating an imaging system that consistently delivers outstanding results. As you gain experience with your specific equipment combination, you’ll develop an intuitive understanding of which techniques offer the greatest benefits for your particular targets and conditions.

Combining with Field Flatteners

While coma correctors address the comet-shaped distortion of stars, they don’t necessarily correct field curvature - another common aberration that causes stars to defocus toward frame edges. For the most demanding applications, combining coma correction with dedicated field flattening can produce superior results. This approach requires careful integration, as both components have specific spacing requirements that must be accommodated simultaneously.

Focal Reducers and Their Effects

Some advanced coma correctors, like the Starizona Nexus, include focal reduction capabilities, effectively creating a faster optical system. This reduction offers several advantages: shorter exposure times for capturing faint objects, wider field of view for larger targets, and often improved illumination across large sensors. The focal reduction typically ranges from 0.7x to 0.8x, transforming an f/4 Newtonian into an even faster f/3.2 or f/3 system.

Understanding the implications of focal reduction helps maximize its benefits. The shorter focal length increases your system’s effective field of view, allowing you to capture larger objects or use smaller pixels for improved sampling. It also increases your system’s sensitivity to tracking errors, potentially requiring more precise guiding or shorter sub-exposures. The trade-off generally favors the reducer-corrector approach for deep-sky imaging, where exposure time is often the limiting factor in capturing faint details.

“The combination of coma correction and focal reduction represents the holy grail for many Newtonian astrophotographers. It effectively transforms a modest 8-inch f/4 Newtonian into a fast astrograph capable of capturing faint galaxies and nebulae in significantly less time, while maintaining excellent star shapes across modern large-format sensors.” - Advanced Imaging Techniques, 2023.

When implementing focal reduction, recalculate your system’s effective focal length and adjust your imaging plans accordingly. The wider field means targets will appear smaller in the frame, potentially requiring different framing decisions. The faster focal ratio also affects exposure planning - expect to reduce exposure times by approximately the square of the reduction factor (a 0.75x reducer allows exposures about 44% shorter for equivalent signal).

Fine-Tuning for Specific Targets

Different astronomical targets benefit from customized optimization of your coma corrector setup. For galaxy imaging, perfect correction across the entire field is often critical, as these objects typically show fine detail that extends from center to edge. For planetary nebulae or smaller targets that occupy only the central portion of the frame, you might prioritize central sharpness over perfect edge correction. For extremely wide fields like Milky Way mosaic panels, consistent correction becomes paramount to allow seamless stitching of adjacent frames.

Take Your Astrophotography to the Next Level

Integrating a quality coma corrector represents one of the most significant improvements you can make to a Newtonian imaging system. The transformation from distorted, unusable edge stars to crisp, pinpoint resolution across the entire field fundamentally changes what your telescope can capture. This upgrade often provides more noticeable improvement than more expensive changes like larger apertures or premium mounts, making it an extremely cost-effective enhancement to your imaging capability.

As you refine your coma correction implementation, you’ll discover that the benefits compound over time. The ability to use your entire sensor effectively expands your field of view, the improved star shapes enhance guiding accuracy, and the overall image quality elevates every aspect of your astrophotography. What begins as a simple optical correction ultimately transforms your entire imaging experience, allowing you to focus on composition and artistic expression rather than fighting equipment limitations.

Frequently Asked Questions

Throughout my years helping fellow astrophotographers implement coma correction, certain questions arise consistently. These common concerns reflect the learning curve associated with integrating these specialized optical accessories. Understanding these fundamentals helps demystify the process and avoid common pitfalls that can lead to disappointment or frustration.

Do I need a coma corrector for all telescope types?

No, coma correctors are primarily designed for Newtonian reflectors, especially those with focal ratios faster than f/5. Schmidt-Cassegrain and Ritchey-Chrétien telescopes exhibit minimal coma by design, though they may benefit from field flatteners to address curvature. Refractors generally don’t suffer from coma but often require different corrections like field flatteners or reducers. The need for correction also depends on your sensor size - smaller sensors use only the central portion of the image circle where coma is less pronounced, while full-frame sensors reveal the full extent of edge distortion.

The decision also depends on your specific requirements and targets. Visual observers or planetary imagers focusing primarily on center-frame objects may never notice coma’s effects, while deep-sky photographers capturing extended objects will find correction essential for quality results. When in doubt, capture test images and examine the star shapes at the frame edges - if you see significant elongation or “comet-tail” effects, a corrector would likely provide substantial improvement.
