Bennett Pinch (Z-Pinch)

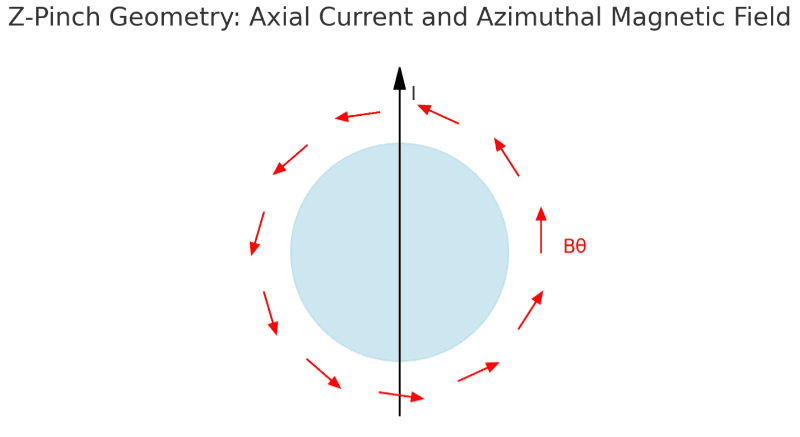

The Bennett pinch, often referred to as the Z-pinch, is a plasma confinement mechanism in which a current-carrying plasma filament is radially compressed by the magnetic field it generates. The effect arises from the balance between the inwardly directed magnetic pressure and the outward thermal pressure of the plasma. This equilibrium condition is described quantitatively by Bennett’s relation, which expresses the equality between the magnetic self-confinement of the current and the kinetic pressure of the plasma particles.

When the current density increases, the associated azimuthal magnetic field strengthens, thereby enhancing the inward Lorentz force acting on the plasma. If the plasma conditions change abruptly—for example, due to rapid variations in current or charge density—the inward pressure may rise sharply, producing a sudden and dramatic contraction of the filament, a process commonly referred to as a pinch.

Analogous pinching behavior can occur in Birkeland currents, where field-aligned plasma flows experience magnetic self-constriction. However, in such cases, the effect generally requires perturbations in the pre-existing magnetic field or the influence of an externally applied field.

Astrophysical observations provide evidence of pinch phenomena in various interstellar and intergalactic environments, where filamentary plasmas are subjected to intense currents and magnetic fields. The internal dynamics of these high-energy regions remain incompletely characterized, and it is uncertain what physical processes occur at their cores. It has been proposed that under sufficiently high pressures, Z-pinch configurations may reach conditions conducive to thermonuclear fusion, though experimental verification of sustained fusion in laboratory-scale Z-pinches has not been achieved.

Theoretical treatments by Hannes Alfvén and his successors placed Z- and Bennett pinch mechanisms at the center of magnetohydrodynamic models describing the contraction and evolution of plasma structures, particularly in the context of cosmic plasma cloud collapse and large-scale current systems.

The Bennett pinch, also known as the Z-pinch, is a plasma confinement mechanism in which an electric current flowing through a plasma filament generates an azimuthal magnetic field. This magnetic field exerts an inward Lorentz force that acts to compress the plasma, counterbalancing its natural expansion due to thermal pressure. The Z-pinch is one of the simplest and most fundamental plasma configurations and has served as both a subject of experimental study in controlled fusion research and a theoretical framework in astrophysical plasma physics.

Bennett’s Relation

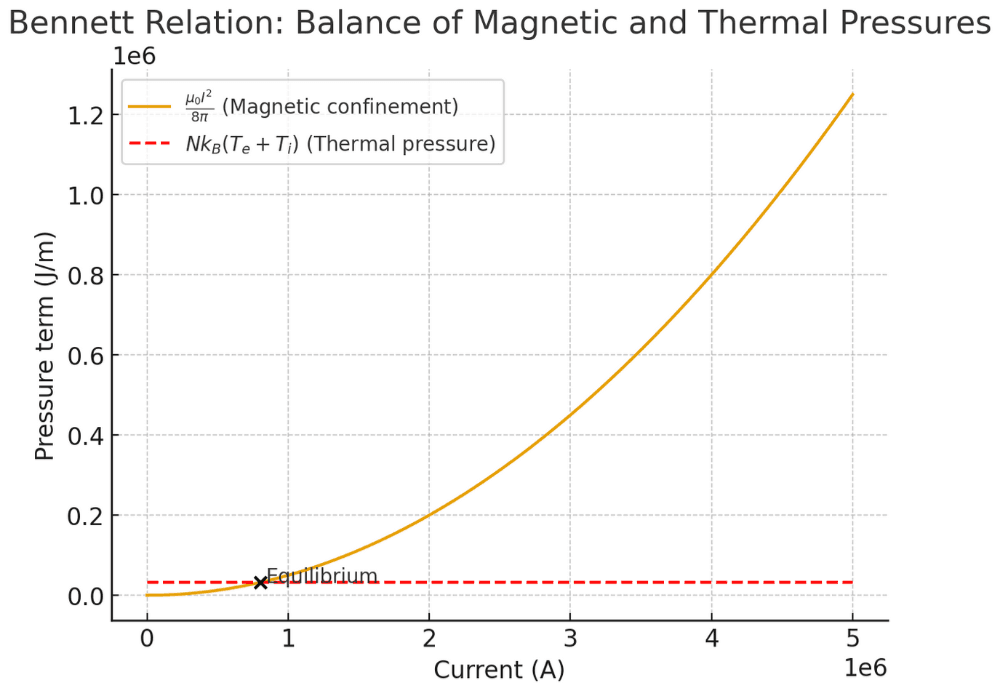

The condition for equilibrium in a pinch is described by Bennett’s relation (Bennett, 1934), which equates the inward magnetic pressure to the outward kinetic pressure of the plasma particles:

where

• μ₀ = permeability of free space

• I = total axial current carried by the plasma

• N = number of plasma particles per unit length of the column

• k_B = Boltzmann constant

• T_e = electron temperature

• T_i = ion temperature

This equation establishes the equilibrium requirement for a current-carrying plasma column. The left-hand side represents the magnetic pinch force, while the right-hand side represents the plasma’s thermal pressure.

If the current increases or the plasma density rises, the magnetic confinement strengthens. Conversely, if thermal pressure dominates, the plasma will expand. Thus, the Bennett condition defines the critical balance point between self-magnetic confinement and thermal expansion.

Pinch Dynamics and Instabilities

While the Z-pinch is conceptually simple, in practice, it is subject to several classes of magnetohydrodynamic (MHD) instabilities, which complicate its stability:

• Sausage (m = 0) Instability
  – The plasma column undergoes radial oscillations, leading to alternating narrow and bulged regions along its axis.
  – This instability tends to fragment the plasma filament.

• Kink (m = 1) Instability
  – The entire plasma column bends or kinks sideways under the influence of perturbations.
  – This can displace the filament from its axis and disrupt confinement.

• Higher-Order Modes
  – More complex deformations (m ≥ 2) may occur, particularly in high-current or long-duration pinches.


These instabilities limit the ability of Z-pinches to achieve long-term confinement. In laboratory settings, Z-pinches are typically transient phenomena, lasting only microseconds before disruption.

If the current increases or the plasma density rises, the magnetic confinement strengthens. Conversely, if thermal pressure dominates, the plasma will expand. Thus, the Bennett condition defines the critical balance point between self-magnetic confinement and thermal expansion.

Laboratory Applications

In controlled fusion research, Z-pinches have been studied as a potential means of achieving the high densities and temperatures required for nuclear fusion reactions. The rapid compression of the plasma can, in principle, raise conditions to fusion-relevant regimes.

However, due to the aforementioned instabilities, sustained fusion in Z-pinches has not been realized. Modern Z-pinch devices (such as those at Sandia National Laboratories) are often employed instead as intense X-ray sources, where the rapid compression and disruption of plasma produce powerful bursts of radiation.

Astrophysical Context

Z-pinch-like processes are believed to occur naturally in a variety of cosmic environments:

• Birkeland Currents: Field-aligned plasma flows in planetary magnetospheres can undergo pinch effects, particularly when perturbed by external fields.

• Interstellar and Intergalactic Filaments: Large-scale cosmic currents may experience self-pinching, producing filamentary structures observed in astrophysical plasmas.

• High-Energy Astrophysical Regions: In environments with extreme currents and magnetic fields, pinch compression could reach conditions favorable to nuclear fusion, although the precise processes at these centers remain uncertain.

Role in Alfvén’s Plasma Models

The Z-pinch and Bennett pinch configurations played a central role in the theoretical work of Hannes Alfvén, the founder of modern plasma astrophysics. Alfvén employed pinch concepts in his magnetohydrodynamic (MHD) models to describe the contraction of plasma clouds, the formation of cosmic filaments, and the large-scale dynamics of current systems in space.

His use of pinch mechanisms helped establish the idea that cosmic plasmas are not merely passive conductors but dynamic systems where electrical currents and magnetic forces shape large-scale astrophysical structures.

Summary

The Bennett pinch represents the fundamental balance between self-magnetic confinement and plasma thermal pressure. While theoretically capable of achieving fusion-relevant conditions, practical realization in the laboratory is limited by severe MHD instabilities. In astrophysical contexts, however, pinch phenomena are thought to play a significant role in shaping plasma structures and may contribute to high-energy processes in space.

Bennett Pinch Fusion Technology – Utilizing the Energy of a Z-Pinch

Key Points

• Bennett Z-pinch fusion represents one of the most promising compact approaches to achieving commercial fusion energy, using magnetic fields to compress plasma without the massive infrastructure of tokamaks.

• Breakthroughs by Lawrence Livermore National Laboratory and Zap Energy have demonstrated unprecedented stability in Z-pinch plasmas through sheared-flow stabilization techniques.

• The Z-pinch approach benefits from the Bennett Relation, which mathematically describes the equilibrium between plasma pressure and magnetic compression forces.

• Unlike larger fusion projects that require billion-dollar investments, Z-pinch technology offers a potentially faster and more cost-effective path to fusion energy commercialization.

• Flow-stabilized Z-pinch technology has overcome historical instability issues that previously limited the viability of this approach for sustainable fusion reactions.

Z-Pinch Fusion: The Magnetic Squeeze That Could Power Our Future

Imagine harnessing the power of a star in a device that could fit inside your garage. This is the promise of Z-pinch fusion technology. Unlike the massive, complex tokamaks that dominate fusion research headlines, Z-pinch devices apply a surprisingly elegant approach to creating fusion conditions. By running powerful electric currents through plasma—a superheated, electrically charged gas—these devices generate magnetic fields that compress the plasma inward from all sides, creating the extreme temperatures and pressures needed for atomic nuclei to overcome their natural repulsion and fuse.

Named after the direction of the current flow along the Z-axis of cylindrical coordinates, Z-pinch technology isn't new, but recent breakthroughs have breathed fresh life into this approach. Private companies like Zap Energy, working in collaboration with research institutions such as Lawrence Livermore National Laboratory, have made substantial progress in overcoming the plasma instabilities that historically plagued Z-pinch devices. These advances have positioned Bennett Z-pinch technology as a serious contender in the race to develop practical fusion energy—potentially offering a faster, more direct path to commercial fusion power than its larger, more expensive counterparts.

The Bennett Z-Pinch Method: How It Works

The fundamental principle behind Z-pinch fusion is deceptively simple: when an electric current flows through a plasma column, it generates a magnetic field that squeezes the plasma inward, compressing and heating it to fusion conditions. This compression mechanism was first described mathematically by Willard Harrison Bennett in 1934, giving rise to the term "Bennett Z-pinch." The process mimics in a controlled environment what happens naturally in lightning strikes and solar flares—powerful electromagnetic forces creating extreme conditions where atomic nuclei can overcome their mutual repulsion.

Modern Z-pinch devices typically feature a cylindrical chamber where deuterium gas (an isotope of hydrogen) is injected and ionized into plasma. Massive capacitor banks discharge millions of amperes of current through this plasma in microsecond pulses. The resulting magnetic pinch effect rapidly compresses the plasma to temperatures exceeding 100 million degrees Celsius and densities high enough for fusion reactions to occur. What makes today's Z-pinch approaches different from earlier attempts is the introduction of stabilizing mechanisms—particularly sheared plasma flows—that prevent the plasma from breaking apart before fusion can happen.

The Physics Behind Plasma Compression

The compression of plasma in a Z-pinch device results from the Lorentz force—the same fundamental electromagnetic force that powers electric motors. When current flows through the plasma column, it creates a circular magnetic field around the current path. This magnetic field interacts with the current itself to produce an inward force perpendicular to both the current and magnetic field directions. The plasma particles, confined by this magnetic pressure, collide with increasing frequency and energy as the compression intensifies, eventually reaching fusion conditions if the compression is strong and stable enough.

Magnetic Fields and Current Flow Dynamics

In the Z-pinch configuration, current flows axially (along the Z-axis) through a cylindrical plasma column. This generates an azimuthal (θ-directed) magnetic field that circles the current path, creating a magnetic "bottle" that squeezes the plasma radially inward. The magnetic pressure increases proportionally to the square of the current, meaning that doubling the current quadruples the compressive force. This relationship allows for significant plasma compression with manageable current levels, especially in pulsed operation.

The plasma itself behaves as both a conductor and a fluid, governed by magnetohydrodynamic (MHD) principles. As current flows through this conductive medium, the plasma responds dynamically to the changing electromagnetic forces. This creates a complex, self-regulating system where the plasma shape, temperature, and density all evolve in response to the applied current and resulting magnetic fields.

Critical to modern Z-pinch success is managing the plasma's natural tendency toward instability. Small irregularities in the plasma column can rapidly grow into large-scale distortions that break the plasma apart—a challenge that has historically limited Z-pinch performance. Recent advances in creating sheared flows within the plasma have shown remarkable success in suppressing these instabilities, allowing the plasma to remain compressed long enough for significant fusion reactions to occur.

Hannes Alfvén and MHD

Hannes Alfvén (1908–1995), the Swedish electrical engineer and plasma physicist, won the 1970 Nobel Prize in Physics for his pioneering work in magnetohydrodynamics (MHD) and its applications to plasma physics. His research laid the foundations for understanding plasma behavior in cosmic and laboratory settings, and MHD is still a cornerstone in astrophysics and fusion research.

However, after receiving the Nobel Prize, Alfvén became increasingly critical of how MHD was being used—particularly when it was applied uncritically to cosmic plasmas.

• His central concern:
  Alfvén argued that many astrophysicists were treating cosmic plasmas as if they behaved like conducting fluids (as in the idealized equations of MHD), ignoring kinetic effects, double layers, filamentation, and electric currents that real plasmas support. He stressed that plasma is a highly non-linear, complex medium, and that the simplified MHD framework could be dangerously misleading if applied dogmatically.

• Warnings to colleagues:
  In lectures and papers after 1970, Alfvén openly warned astrophysicists against relying solely on MHD models. He called this tendency “MHD dogma” and pointed out that laboratory plasma experiments showed behaviors (e.g., filamentation, double layers, and particle acceleration) that MHD could not adequately describe. He urged scientists to pay attention to empirical plasma physics rather than treating astrophysical plasmas as abstract fluids.

• Quotations that illustrate his stance:
  • “In the field of cosmology, there are at present fundamental difficulties that stem from an uncritical application of magnetohydrodynamics.”
  • “The plasma universe is a complex system, and to treat it with the simple-minded application of magnetohydrodynamics is to invite misunderstanding.”

Alfvén did not reject MHD outright (he developed it and knew its usefulness), but after the Nobel Prize, he tried to dissuade physicists from over-relying on MHD, especially in astrophysics and cosmology. He emphasized that real plasmas, both in the lab and in space, required a more detailed, experimental, and electric-current-based treatment than MHD alone could provide. In short, Alfvén never renounced MHD itself but strongly cautioned against its overextension, especially in astrophysics. He argued that real plasmas behave more complexly than idealized MHD allows, and he spent much of his later career warning the community not to ignore experimental plasma physics.

Bennett Relation Simply Explained

The Bennett Relation, formulated by Willard Harrison Bennett in 1934, provides the mathematical foundation for Z-pinch fusion. At its core, the relation describes an equilibrium state where the outward pressure of the hot plasma exactly balances the inward force from the magnetic field. This elegant equation relates four critical parameters: the plasma current, the plasma temperature, the plasma density, and the radius of the plasma column. For fusion to become viable, this equilibrium must be maintained long enough for sufficient fusion reactions to occur, while achieving the extreme temperatures (over 100 million degrees Celsius) necessary for hydrogen isotopes to fuse.

Evolution of Z-Pinch Technology

Z-pinch research has a storied history dating back further than most people realize. While fusion research often brings to mind massive tokamak devices like ITER, the Z-pinch approach represents one of the earliest attempts at controlled fusion. This lineage of development shows both the persistent challenges and remarkable potential of the technology, culminating in today's renewed interest backed by advanced simulation tools and diagnostic capabilities that early researchers could only dream of.

Early Pinch Experiments in the 1950s

The first serious Z-pinch fusion experiments emerged in the post-World War II era, when scientists fresh from developing the atomic bomb turned their attention to peaceful uses of nuclear energy. Early devices like the "Model C Stellarator" at Princeton and "Columbus" at Los Alamos attempted to create fusion conditions using primitive pinch techniques. These initial experiments revealed the fundamental challenge that would haunt Z-pinch research for decades: plasma instabilities. When current passed through the plasma column, small irregularities would rapidly grow into large-scale distortions, breaking the plasma column apart before fusion conditions could be sustained. Despite these challenges, these pioneering efforts established the theoretical foundation that modern Z-pinch approaches still build upon.

ZETA and Historical Milestones

The Zero Energy Thermonuclear Assembly (ZETA) represents perhaps the most famous early Z-pinch experiment. Built in the United Kingdom in 1954, ZETA was the largest fusion device of its time and initially sparked tremendous excitement when researchers reported neutron production that seemed to indicate fusion reactions. While later analysis revealed these results came from acceleration effects rather than true thermonuclear fusion, ZETA provided crucial insights into plasma behavior and stability challenges. Following ZETA, research attention largely shifted to tokamak and stellarator designs that promised better stability, leaving Z-pinch approaches relatively underexplored for decades despite their inherent simplicity and potential for compact design.

Z-Pinch Facilities in 2025

Mid-2020s Z-pinch research bears little resemblance to these early efforts, leveraging advanced materials, unprecedented computational modeling capabilities, and sophisticated diagnostics systems. Modern facilities like Sandia National Laboratories' Z Machine represent the high-energy frontier of pulsed power research, capable of delivering 26 million amperes in a 100-nanosecond pulse to create extreme states of matter. Rather than pursuing steady-state fusion, these machines compress plasma to fusion conditions for brief microsecond periods, allowing researchers to study plasma behavior under extreme conditions. Other facilities like the MAGPIE experiment at Imperial College London focus on specific physics questions related to Z-pinch stability and performance, providing critical insights that feed into both basic science and potential commercial applications.

Zap Energy's FuZE Project Breakthroughs

Among the most promising recent developments is Zap Energy's Fusion Z-pinch Experiment (FuZE). This Seattle-based startup has pioneered the sheared-flow stabilized Z-pinch approach, which introduces velocity shear in the flowing plasma to dramatically improve stability. Recent collaboration between Zap Energy and Lawrence Livermore National Laboratory has yielded unprecedented measurements of plasma conditions in these stabilized Z-pinches, demonstrating elevated electron temperatures and densities that approach fusion-relevant conditions. These results represent a significant step forward in addressing the historical instability problems that limited Z-pinch performance, potentially unlocking a path to compact, economical fusion power that earlier generations of researchers could only imagine.

Why the Bennett Z-Pinch Stands Out From Other Fusion Approaches

Bennett Z-pinch technology offers several compelling advantages that have reignited interest in this approach as a potential fast track to commercial fusion energy. While tokamaks and stellarators continue to dominate fusion research budgets, the Z-pinch method's fundamental simplicity and potential for rapid development cycles have attracted significant private investment and renewed scientific attention. These advantages don't guarantee success, but they do present a different risk-reward profile that complements larger, more conservative fusion approaches.

Compact Design Advantages

Perhaps the most striking advantage of Z-pinch fusion is its inherent compactness. While ITER—the international tokamak project—will weigh 23,000 tons and stand 30 meters tall, Z-pinch devices achieve fusion conditions in an apparatus that can fit in a small laboratory room. This dramatic size reduction stems from the direct approach to plasma compression: rather than using complex magnetic field geometries to indirectly contain plasma, Z-pinches directly compress the plasma through electromagnetic forces. The resulting engineering simplification translates to smaller physical size, reduced material requirements, and potentially faster iteration cycles for testing and improvement. For private fusion companies seeking commercial viability, this compactness could mean the difference between economically competitive power and interesting science experiments.

Cost-Effectiveness Compared to Tokamaks

The economic implications of Z-pinch's compact design extend well beyond the physical footprint. While ITER's budget has ballooned to over $22 billion, companies like Zap Energy are pursuing fusion with investment measured in the hundreds of millions—a fraction of the cost of mainstream approaches. This cost advantage stems from several factors: simpler engineering requirements, fewer exotic materials, less complex superconducting magnets (or none at all in some designs), and the ability to build and test multiple iterations rapidly. The economic benefits potentially extend to eventual power plants as well, with Z-pinch advocates suggesting their approach could lead to smaller, more distributed fusion facilities that better match evolving power grid requirements compared to the massive central plants envisioned for tokamak technology.

Flow Stabilization: The Game-Changer

The most significant technical breakthrough enabling modern Z-pinch progress is the development of flow stabilization techniques. By introducing a sheared flow velocity profile within the plasma—where different layers of plasma move at different speeds—researchers have found a remarkably effective method for suppressing the instabilities that historically plagued Z-pinch devices. This approach, pioneered at the University of Washington and commercialized by Zap Energy, represents a fundamental advance that addresses the core challenge that shifted research away from Z-pinches decades ago.

The sheared flow creates what amounts to a dynamic stabilization effect, preventing small perturbations from growing into disruptive instabilities. This elegant solution potentially unlocks the inherent advantages of Z-pinch geometry without its historical limitations, opening a new chapter in fusion research.

Breakthroughs in Z-Pinch Research

Remarkable progress in Z-pinch fusion technology has been witnessed, with advances in both fundamental understanding and practical implementation. These breakthroughs have elevated Z-pinch approaches from scientific curiosities to serious contenders in the race toward commercial fusion energy. While still facing significant challenges, the pace of advancement suggests Z-pinch technology may play a more prominent role in the fusion landscape than many expected.

Lawrence Livermore's Plasma Pressure Profile Discoveries

Recent collaborative work between Lawrence Livermore National Laboratory and Zap Energy has unveiled critical insights into plasma pressure profiles within flow-stabilized Z-pinches. Using advanced Thomson scattering diagnostics, researchers measured unprecedented electron temperatures and densities within Zap's FuZE device. These measurements revealed a more complex and favorable pressure distribution than previously modeled, suggesting Z-pinches can achieve better confinement properties than earlier theories predicted. This breakthrough demonstrates how modern diagnostic capabilities are transforming our understanding of plasma behavior in ways that weren't possible during early Z-pinch research.

Temperature and Density Achievements

The latest generation of Z-pinch devices has achieved remarkable plasma conditions that approach fusion-relevant parameters. Electron temperatures exceeding 1 keV (over 11 million degrees Celsius) and ion temperatures approaching similar values have been documented in flow-stabilized configurations. Perhaps more importantly, these experiments have demonstrated density-confinement time products (a key metric for fusion viability) that continue to improve with each iteration of the technology. While still below the Lawson criteria needed for energy-positive fusion, the rapid improvement trajectory suggests this approach could reach fusion-relevant conditions faster than many competing technologies.

Stability Control Innovations

Beyond sheared-flow stabilization, researchers have developed additional techniques to enhance Z-pinch performance. These include precisely tailored current profiles, improved electrode designs that minimize impurities, and advanced pulse-shaping methods that optimize compression dynamics. Computer simulations now accurately predict how these factors interact, allowing researchers to optimize configurations before building hardware. The result is a virtuous cycle of improvement where each experiment informs better simulations, which in turn guide more effective experiments—dramatically accelerating the development timeline compared to earlier trial-and-error approaches.

Technical Challenges Facing Z-Pinch Fusion

Despite impressive progress, Z-pinch fusion technology faces substantial hurdles before commercial energy production becomes a reality. These challenges span basic plasma physics, materials science, and engineering scalability—each requiring innovative solutions before Z-pinch fusion can deliver on its promise. Understanding these obstacles provides crucial context for evaluating both the potential and limitations of this approach in the broader fusion landscape.

Plasma Instabilities and Control Issues

While sheared-flow stabilization has dramatically improved plasma behavior, instabilities remain a primary concern for Z-pinch devices. At higher currents and longer confinement times needed for net energy production, new forms of instability may emerge that aren't present in current experimental regimes. Researchers are particularly focused on the kink instability (which bends the plasma column like a garden hose under pressure) and the Rayleigh-Taylor instability (which causes ripples at the plasma boundary to grow exponentially). Controlling these phenomena at fusion-relevant conditions represents perhaps the most fundamental scientific challenge facing Z-pinch approaches.

Energy Balance Problems

Achieving fusion reactions is necessary but insufficient for practical energy production—the fusion device must ultimately produce more energy than it consumes. In Z-pinch systems, this means overcoming losses from radiation, particle transport, and resistive heating in the electrical systems that deliver current to the plasma. Current Z-pinch devices operate in pulsed mode with significant energy losses in the capacitor banks and transmission systems that deliver the massive currents needed for compression. Engineering more efficient pulsed power systems while simultaneously increasing fusion yield represents a critical challenge for the technology's commercial viability.

Materials Science Limitations

The extreme conditions in a fusion device—intense neutron flux, electromagnetic forces, and thermal cycling—place extraordinary demands on materials. Z-pinch fusion reactors would subject electrodes and chamber walls to particularly severe conditions, including intense plasma-material interactions at the electrode interfaces where current enters and exits the plasma. Developing materials that can withstand these conditions while maintaining consistent performance over thousands or millions of pulses remains an unsolved challenge. This question about materials may ultimately determine the economic viability of Z-pinch fusion more than the underlying plasma physics.

Scaling Up for Commercial Viability

The path from current experimental devices to commercial power plants requires significant scaling in both size and performance. While Z-pinch devices benefit from favorable scaling laws in some respects, uncertainties remain about how plasma behavior will change at the higher currents, densities, and confinement times needed for net energy production. Additionally, practical power plants would need to operate at pulse repetition rates far beyond current capabilities—potentially many pulses per second rather than the minutes or hours between pulses in today's experimental devices. This repetition rate challenge touches on everything from cooling systems to materials lifetime to energy storage and delivery mechanisms.

Z-Pinch Fusion vs. Other Fusion Methods

The fusion energy landscape features diverse approaches, each with unique advantages and challenges. Understanding how Z-pinch technology compares to alternatives like tokamaks, stellarators, and inertial confinement fusion provides essential context for assessing its potential role in our energy future. Rather than a winner-takes-all competition, these different approaches represent complementary paths that address the fusion challenge from different angles, potentially leading to multiple viable solutions.

Tokamak Comparison

Tokamaks represent the most mature and well-funded fusion approach, exemplified by the international ITER project under construction in France. These donut-shaped devices use complex magnetic fields to contain plasma in a steady-state configuration, avoiding the instabilities that plagued early Z-pinch attempts. However, tokamaks require massive, expensive superconducting magnets and complex engineering to maintain their magnetic configuration. Z-pinch devices offer a dramatically simpler alternative that potentially trades steady-state operation for pulsed but more intense fusion conditions. While tokamaks currently lead in plasma performance metrics like triple product (density × temperature × confinement time), Z-pinches offer potentially faster development cycles due to lower costs and simpler construction.

Inertial Confinement Differences

Inertial confinement fusion (ICF), demonstrated at facilities like the National Ignition Facility, takes yet another approach—using powerful lasers to implode tiny fuel pellets to fusion conditions. Like Z-pinches, ICF operates in a pulsed mode rather than steady-state, but it relies on inertial forces rather than magnetic confinement to achieve fusion conditions. Z-pinch technology occupies an interesting middle ground between magnetic and inertial approaches, sometimes called magneto-inertial fusion. This hybrid nature potentially offers advantages in efficiency and practical implementation, though both approaches face significant challenges in repetition rate and energy balance for commercial applications.

Stellarator Trade-offs

Stellarators represent another magnetic confinement approach that uses complex three-dimensional magnetic field configurations to improve stability compared to tokamaks. Modern stellarators like Germany's Wendelstein 7-X demonstrate impressive plasma stability but at the cost of extraordinarily complex engineering and construction. Z-pinch technology sits at the opposite end of the complexity spectrum, achieving fusion conditions through direct electromagnetic compression rather than elaborate magnetic field geometries. This simplicity translates to lower construction costs and potentially faster iteration cycles, though stellarators may ultimately offer advantages in steady-state operation and plasma stability if their engineering challenges can be overcome.

The Path to Commercial Z-Pinch Fusion Energy

Translating promising Z-pinch research into practical power plants requires navigating a complex landscape of scientific validation, engineering development, regulatory approval, and commercial deployment. This path includes multiple inflection points where the technology must demonstrate increasingly demanding performance metrics to justify continued investment. Understanding this commercialization journey helps contextualize current progress and prospects for Z-pinch fusion energy.

Timeline Projections

While fusion timelines have historically been overly optimistic, the accelerating pace of Z-pinch development suggests commercial applications could emerge faster than traditional approaches. Companies like Zap Energy project demonstration of scientific breakeven (fusion energy equal to input energy) within this decade, followed by pilot plants in the 2030s and commercial deployment starting in the late 2030s or early 2040s. These projections assume continued progress in plasma stability and energy containment, alongside engineering advances in materials, pulsed power systems, and thermal conversion. The timeline benefits from Z-pinch's relatively simple construction compared to tokamaks, potentially allowing faster iteration cycles and more rapid progress through development stages.

Private Sector Momentum

Unlike earlier fusion research dominated by government laboratories, today's Z-pinch development features significant private sector investment and leadership. Companies like Zap Energy have raised substantial venture capital funding based on the promise of a faster, more capital-efficient path to fusion energy. This private sector involvement brings different incentives and approaches compared to academic or government research—focusing on practical energy production rather than fundamental science, and prioritizing development speed over comprehensive understanding. The result is a more diverse fusion ecosystem where private Z-pinch developers complement rather than compete with public research programs, potentially accelerating overall progress toward practical fusion energy.

Investment Landscape and Funding

Z-pinch fusion has attracted hundreds of millions in private investment over the past five years, reflecting growing confidence in its commercial potential. Investors range from traditional venture capital firms to strategic energy companies seeking long-term alternatives to fossil fuels. This capital influx has enabled rapid scaling of research teams, facilities, and experimental capabilities at companies like Zap Energy. Public funding has also increased through programs like ARPA-E's BETHE (Breakthroughs Enabling THermonuclear-fusion Energy) initiative, which specifically targets alternative approaches like Z-pinch that offer potentially faster paths to commercial fusion. This blend of private and public funding creates a more resilient development ecosystem than either sector could support alone.

How Z-Pinch Could Transform Our Energy Future

Beyond the technical details lies the more profound question of how Z-pinch fusion could reshape our energy systems and address planetary-scale challenges. If successfully commercialized, this technology would represent not just another energy source but a fundamental transformation in how we generate and distribute power—potentially addressing climate change, energy security, and economic development simultaneously. Understanding these broader implications helps frame the significance of current research efforts and the value of continued investment in this promising approach.
